高壓交聯聚乙烯絕緣電力電纜（10-35KV）
添加時間：2017-02-08 14:41:13
高壓交聯聚乙烯絕緣電力電纜（10-35KV）
XLPE INSULATED POWER CABLE(10-35KV)
一、產品特性
Property for Use
交聯聚乙烯絕緣電力電纜，采用化學方法或物理方法，使聚乙烯分子由線型分子結構轉變?yōu)榭臻g網狀結構，使熱塑性的聚乙烯轉變?yōu)闊峁绦缘慕宦?lián)聚乙烯，使其機械性能、熱老化性能及環境應力能力在很大的程度上得到提高，并具有優良的電氣性能。具有導體正常運行溫度高、結構簡單、外徑小、重量輕、使用方便、不受敷設落差限制等特性。適用于工頻額定電壓6-35kV輸配電系統。
The conductor XLPE insulated power cable is produced through chemical or physical methods so that the product is considerably improved in its mechanical performance,thermo-ageing performance and adaptablity,and bears fine electrical performance.It possesses such unique characteristics as the conductor’s high temperature in operation,simple in structure,small in outer diameter,light in weight, convenient in use and free from the restriction of level difference of installation.It is fit for power distribution and transmission network of 6-35kV.
二、型號、名稱、用途及使用說明

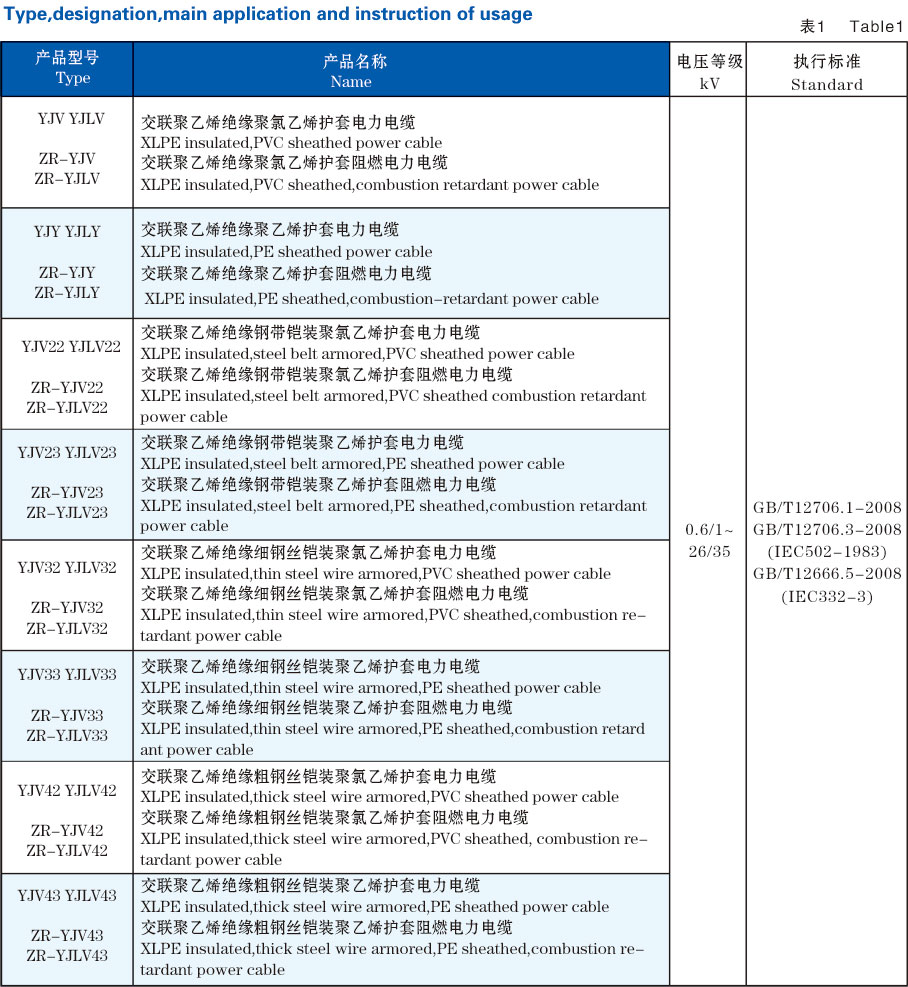

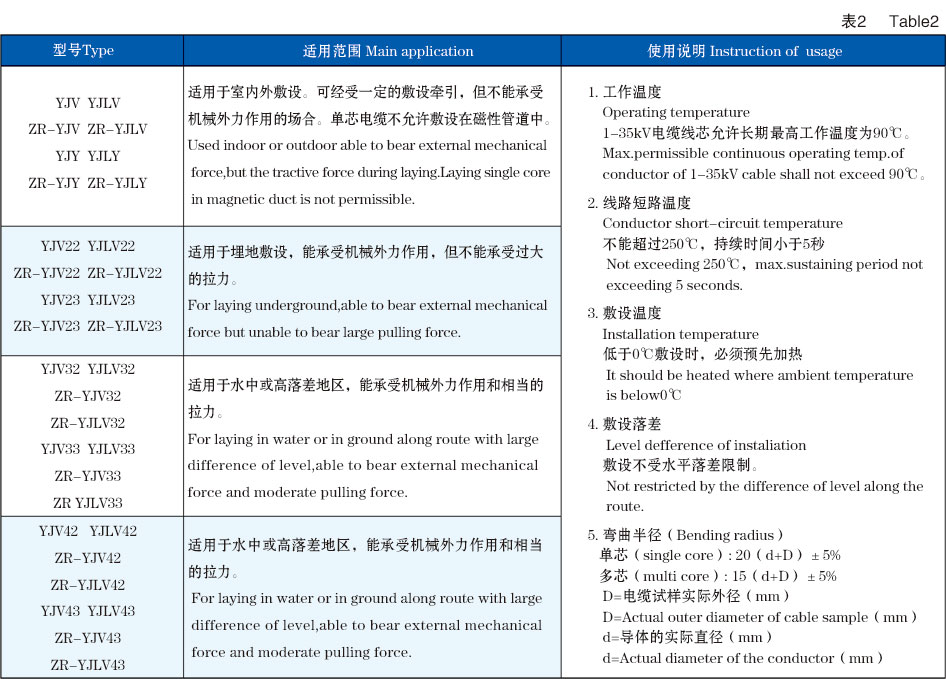

Type,designation,main application and instruction of usage
